tools::sg::style_colormap Class Reference

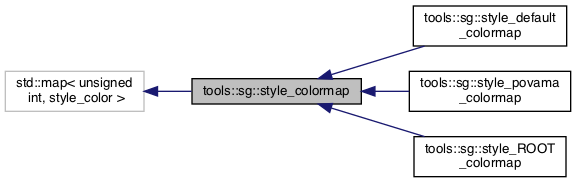

Inheritance diagram for tools::sg::style_colormap:

Collaboration diagram for tools::sg::style_colormap:

Public Member Functions
	style_colormap ()
virtual	~style_colormap ()
	style_colormap (const style_colormap &a_from)
style_colormap &	operator= (const style_colormap &a_from)
bool	get_color (unsigned int a_index, colorf &a_col) const
bool	get_color (const std::string &a_s, colorf &a_col) const
bool	get_string_color (unsigned int a_index, std::string &a_s) const
void	add (const style_color &a_color)

Protected Types
typedef std::map< unsigned int, style_color >	map_t

Detailed Description

Definition at line 20 of file style_colormap.

Member Typedef Documentation

map_t

typedef std::map<unsigned int,style_color> tools::sg::style_colormap::map_t

protected

Definition at line 23 of file style_colormap.

Constructor & Destructor Documentation

style_colormap() [1/2]

tools::sg::style_colormap::style_colormap ( )

inline

Definition at line 27 of file style_colormap.

                  :parent(){
#ifdef TOOLS_MEM
    mem::increment(s_class().c_str());
#endif
  }

~style_colormap()

virtual tools::sg::style_colormap::~style_colormap ( )

inlinevirtual

Definition at line 32 of file style_colormap.

                           {
#ifdef TOOLS_MEM
    mem::decrement(s_class().c_str());
#endif
  }

style_colormap() [2/2]

tools::sg::style_colormap::style_colormap ( const style_colormap &  a_from )

inline

Definition at line 38 of file style_colormap.

                                              :parent(a_from){
#ifdef TOOLS_MEM
    mem::increment(s_class().c_str());
#endif
  }

Member Function Documentation

add()

void tools::sg::style_colormap::add ( const style_color &  a_color )

inline

Definition at line 78 of file style_colormap.

                                       {
    (*this)[uint32((*this).size())] = a_color;
  }

get_color() [1/2]

bool tools::sg::style_colormap::get_color ( const std::string &  a_s, colorf &  a_col  ) const

inline

Definition at line 57 of file style_colormap.

                                                           {
    tools_mforcit(unsigned int,style_color,*this,it) {
      if((*it).second.first==a_s) {
        a_col = (*it).second.second;
        return true;
      }
    }
    //we do not set a_col to something.
    return false;
  }

get_color() [2/2]

bool tools::sg::style_colormap::get_color ( unsigned int  a_index, colorf &  a_col  ) const

inline

Definition at line 48 of file style_colormap.

                                                           {
    map_t::const_iterator it = find(a_index);
    if(it==end()) {
      a_col.set_value(0.5F,0.5F,0.5F,1);
      return false;
    }
    a_col = (*it).second.second;
    return true;
  }

get_string_color()

bool tools::sg::style_colormap::get_string_color ( unsigned int  a_index, std::string &  a_s  ) const

inline

Definition at line 67 of file style_colormap.

                                                                  {
    map_t::const_iterator it = find(a_index);
    if(it==end()) {a_s.clear();return false;}
    colorf c = (*it).second.second;

    char ss[192]; //3*64 = 192
    snpf(ss,sizeof(ss),"%g %g %g",c[0],c[1],c[2]);
    a_s = std::string(ss);
    return true;
  }

operator=()

style_colormap& tools::sg::style_colormap::operator= ( const style_colormap &  a_from )

inline

Definition at line 43 of file style_colormap.

                                                         {
    parent::operator=(a_from);
    return *this;
  }

---

The documentation for this class was generated from the following file:

• /Users/barrand/private/dev/softinex/g4tools/g4tools/tools/sg/style_colormap
